| 型號 |
圖片 |
說明 |
下載 |
| MSM9066 & MSM9184 |
 |
support:
~59 系列
SM5964,SM5964A,SM59264,SM59128,SM5912,SM5916,SM59D03G2,SM59D04G2,SM5952,SM5953,SM5964B,SM5958,SM5952E,SM5958,SM5954
~59A 系列
SM59A16U1,OB59A128A1
~59R 系列
SM59R02A1,SM59R03A1,SM59R04A1,SM59R04A2,SM59R05A3,SM59R09A3,SM59R16A3,
SM59R05A5,SM59R09A5,SM59R16A5,SM59R05G6,SM59R09G6,SM59R16G6,SM59R02G1,
~39R 系列
SM39R2051,SM39R4051,SM39R02G1,SM39R04G1,SM39R08A2,SM39R12A2,SM39R16A2,SM39R16A6,SM39R08A5,SM39R08A3,SM39R16A3,OB39R32T1,OB39R62T1,OB39R32T2,OB39R62T2
~39A 系列
SM39A16M1,OB39A16D1,OB39A08T1,OB39A16T1,OB39A16D2,OB39A08T2,OB39A16D3
~38系列
OB38R08A1,OB38A04T1,OB38A08T1,OB38R08T1,OB38R16T1
|
 |
|
| ChipWatcher V4.0.1.1058 for MSM9066 OCD |
|
On-Chip-Debugger Tool for 1T product,ICE,SMLink51
|
|
|
| MSM9171 燒錄器 |
 |
~89 系列
SM8951A,SM8951B,SM8952A,SM8952B,SM8954A,SM8958A,SM89516A,
SM89516,SM89S16R1,SM8954B,SM8958B,SM89516B
~79 系列
SM79108,SM79164,
~59 系列
SM5964,SM5964A,SM59264,SM59128,SM5912,SM5916,SM59D03G2,SM59D04G2,SM5952,SM5953,SM5964B,SM5958,SM5952E,SM5954
~59R 系列
(SAB0005轉板)
SM59R02A1,SM59R03A1,SM59R04A1,SM59R04A2,
SM59R05A3,SM59R09A3,SM59R16A3,
SM59R05A5,SM59R09A5,SM59R16A5,
SM59R05G6,SM59R09G6,SM59R16G6,SM59R02G1,
~59A 系列
SM59A16U1
~39R 系列
(SAB0012轉板)
SM39R2051,SM39R4051,SM39R02G1,SM39R04G1,
(SAB0013轉板)
SM39R08A2,SM39R12A2,SM39R16A2,
~39A 系列
SM39A16M1
|
|
|
| MSM9059B燒錄工具 |
 |
On-line/Off-line ISP support:
~59 系列
SM5964,SM5964A,SM59264,SM59128,SM5912,SM5916,SM59D03G2,SM59D04G2,SM5952,SM5953,SM5964B,SM5958,SM5952E,SM5958,SM5954
~59A 系列
SM59A16U1,OB59A128A1
~59R 系列
SM59R02A1,SM59R03A1,SM59R04A1,SM59R04A2,SM59R08A2,SM59R16A2,SM59R05A3,SM59R09A3,SM59R16A3,
SM59R05A5,SM59R09A5,SM59R16A5,SM59R05G6,SM59R09G6,SM59R16G6,SM59R02G1,
(SM59R08A2 and SM59R16A2 must contact SyncMOS to got ISP code)
~39R 系列
SM39R2051,SM39R4051,SM39R02G1,SM39R04G1,SM39R08A2,SM39R12A2,SM39R16A2,SM39R16A6
~39A 系列
SM39A16M1
On-line/Off-line ICP support:
~59 系列
SM5912,SM5916,SM59D03G2,SM59D04G2,
~59A 系列
SM59A16U1
~59R 系列
SM59R02A1,SM59R03A1,SM59R04A1,SM59R04A2,SM59R08A2,SM59R16A2,SM59R05A3,SM59R09A3,SM59R16A3,
SM59R05A5,SM59R09A5,SM59R16A5,SM59R05G6,SM59R09G6,SM59R16G6,
~39R 系列
SM39R2051,SM39R4051,SM39R02G1,SM59R04G1,SM39R08A2,SM39R12A2,SM39R16A2,SM39R08A3,SM39R16A3,SM39R05A5,SM39R08A5,SM39R16A6
~39A 系列
SM39A16M1,OB39A16D1,OB39A08T1,OB39A16T1,OB39A16D2,OB39A08T2,OB39A16D3
|
|
|

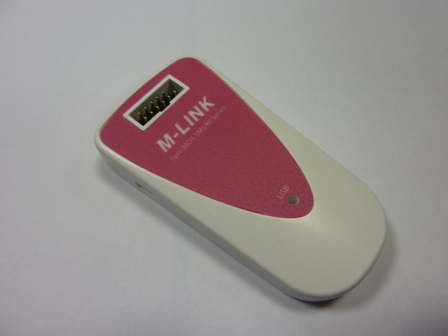

| M-LINK OCD開發工具 |
 |
1T 52 Base:
SM59R16A5, SM59R09A5, SM59R05A5, SM59R16A3, SM59R09A3, SM59R05A3, SM59R16G6, SM59R09G6, SM59R05G6, SM59R16A2, SM59R08A2, SM59A16U1
1T Slim 52:
SM39R16A2, SM39R12A2, SM39R08A2, SM39R16A3,
SM39R08A3, SM39R08A5,
SM39A16M1
1T Tiny 52:
SM39R4051, SM39R2051, SM39R04G1, SM39R02G1.
(注意:SM59R04A2, SM59R04A1, SM59R03A1, SM59R02A1, 此系列需使用專用於ICE的樣片, 請洽代理商或原廠客服申請)
|
|
|
| |
|
|
|
|
 |
 |
